Working with Stages
Each Kargo Stage is represented by a Kubernetes resource of type Stage
.
The Stage
Resource Type
Like most Kubernetes resources, a Stage
is composed of a user-defined spec
field
and a system-populated status
field.
A Stage
resource's spec
field is itself composed of three main areas of concern:
-
Requested Freight
-
Promotion template
-
Verification
The following sections will explore each of these spec
sections as well as status
in greater detail.
Requested Freight
The spec.requestedFreight
field is used to describe one or more "types" of
Freight
, as specified by an origin
, that the Stage
's promotion process, as
specified by spec.promotionTemplate
, will operate on, and the acceptable
sources from which to obtain that Freight
. Those sources may include the
origin itself (e.g. a Warehouse
) and/or any number of "upstream" Stage
resources.
Warehouse
s are the only type of origin at present, but it is anticipated that
future versions of Kargo will introduce additional origin types. This is why
"types" of Freight
are described by an origin
field having kind
and name
subfields instead of being described only by the name of a Warehouse
.
For each Stage
, the Kargo controller will periodically check for Freight
resources that are newly available for promotion to that Stage
.
When a Stage
accepts Freight
directly from its origin, all new Freight
created by that origin (e.g. a Warehouse
) are immediately available for
promotion to that Stage
.
When a Stage
accepts Freight
from one or more "upstream" Stage
resources,
Freight
is considered available for promotion to that Stage
only after being
verified in at least one of the upstream Stage
s. Alternatively, users with
adequate permissions may manually approve Freight
for promotion to any given
Stage
without requiring upstream verification.
Explicit approvals are a useful method for applying the occasional "hotfix"
without waiting for a Freight
resource to traverse the entirety of a pipeline.
In the following example, the test
Stage
requests Freight
that has
originated from the my-warehouse
Warehouse
and indicates that it will accept
new Freight
directly from that origin:
apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
name: test
namespace: kargo-demo
spec:
requestedFreight:
- origin:
kind: Warehouse
name: my-warehouse
sources:
direct: true
# ...
# ...
In this example, the uat
Stage
requests Freight
that has originated from
the my-warehouse
Warehouse
, but indicates that it will accept such Freight
only after it has been verified in the test
Stage
:
apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
name: uat
namespace: kargo-demo
spec:
requestedFreight:
- origin:
kind: Warehouse
name: my-warehouse
sources:
stages:
- test
# ...
Stages may also request Freight
from multiple sources. The following example
illustrates a Stage
that requests Freight
from both a microservice-a
and
microservice-b
Warehouse
:
apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
name: test
namespace: kargo-demo
spec:
requestedFreight:
- origin:
kind: Warehouse
name: microservice-a
sources:
direct: true
- origin:
kind: Warehouse
name: microservice-b
sources:
direct: true
# ...
By requesting Freight
from multiple sources, a Stage
can effectively
participate in multiple pipelines that may each deliver different collections
of artifacts independently of the others.
This is advanced configuration. If you're very new to Kargo
and requesting Freight
from multiple origins, you probably
didn't mean to.
Promotion Templates
The spec.promotionTemplate
field is used to describe how to transition
Freight
into the Stage
. The spec.promotionTemplate.steps
field describes
the discrete steps of a promotion process in detail.
In the following, very common example, the promotionTemplate
describes steps
to:
-
Clone a Git repository containing Kubernetes manifests and Kustomize configuration, checking out two different branches to two different directories.
-
Clears the contents of one working tree, with intentions to fully replace its contents.
-
Runs the equivalent of
kustomize edit set image
to update akustomization.yaml
file with a reference to an updatedpublic.ecr.aws/nginx/nginx
container image. -
Renders the updated manifests using the equivalent of
kustomize build
. -
Commits the updated manifests and pushes them to the
stage/test
of the remote repository. -
Forces Argo CD to sync the
kargo-demo-test
application to the latest commit of thestage/test
branch.
promotionTemplate:
spec:
vars:
- name: gitopsRepo
value: https://github.com/example/repo.git
- name: imageRepo
value: public.ecr.aws/nginx/nginx
- name: srcPath
value: ./src
- name: outPath
value: ./out
- name: targetBranch
value: stage/${{ ctx.stage }}
steps:
- uses: git-clone
config:
repoURL: ${{ vars.gitopsRepo }}
checkout:
- branch: main
path: ${{ vars.srcPath }}
- branch: stage/${{ ctx.stage }}
create: true
path: ${{ vars.outPath }}
- uses: git-clear
config:
path: ${{ vars.outPath }}
- uses: kustomize-set-image
as: update-image
config:
path: ${{ vars.srcPath }}/base
images:
- image: ${{ vars.imageRepo }}
- uses: kustomize-build
config:
path: ${{ vars.srcPath }}/stages/${{ ctx.stage }}
outPath: ${{ vars.outPath }}/manifests.yaml
- uses: git-commit
as: commit
config:
path: ${{ vars.outPath }}
messageFromSteps:
- update-image
- uses: git-push
config:
path: ${{ vars.outPath }}
branch: ${{ vars.targetBranch }}
- uses: argocd-update
config:
apps:
- name: kargo-demo-${{ ctx.stage }}
sources:
- repoURL: ${{ vars.gitopsRepo }}
desiredRevision: ${{ outputs.commit.commit }}
For complete documentation of all Kargo's built-in promotion steps, refer to the Promotion Steps Reference.
Verification
The spec.verification
field is used to describe optional verification
processes that should be executed after a Promotion
has successfully deployed
Freight
to a Stage
, and if applicable, after the Stage
has reached a
healthy state. The following example depicts a Stage
resource that references
an AnalysisTemplate
named integration-test
to validate the dev
Stage
after
any successful promotion:
apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
name: dev
namespace: guestbook
spec:
# ...
verification:
analysisTemplates:
- name: integration-test
For complete documentation of how to perform verification, refer to the Verification Guide.
Status
The status
field of a Stage
resource records:
-
Conditions containing the last observations of the
Stage
's current state. -
The current phase of the
Stage
's lifecycle (distilled from the conditions). -
Details about the last
Promotion
and any in-progressPromotion
. -
History of
Freight
that has been deployed to theStage
(from most to least recent) along with the results of any associated verification processes. -
The health status of related Argo CD
Application
resources.
For example:
status:
freightHistory:
- id: 101bca5b0e18ca7913978a1da956308d2544f741
items:
Warehouse/my-warehouse:
commits:
- healthCheckCommit: 111eaf55aa41f21bb9bb707ba1baa748b83ec51e
id: 961cfaedbc53aacdb65110028839a2c1c281290d
repoURL: https://github.com/example/kargo-demo.git
images:
- digest: sha256:b2487a28589657b318e0d63110056e11564e73b9fd3ec4c4afba5542f9d07d46
repoURL: public.ecr.aws/nginx/nginx
tag: 1.27.0
name: 666209fd9755a1e48bec6b27f5f447747410dd9e
origin:
kind: Warehouse
name: my-warehouse
verificationHistory:
- analysisRun:
name: test.01j2w7aknhf3j7jteyqs72hnbg.101bca5
namespace: kargo-demo
phase: Successful
finishTime: "2024-07-15T22:13:57Z"
id: 5535a484-bbd0-4f12-8cf4-be2c8e0041c9
phase: Successful
startTime: "2024-07-15T22:13:34Z"
health:
argoCDApps:
- healthStatus:
status: Healthy
name: kargo-demo-test
namespace: argocd
syncStatus:
revision: 111eaf55aa41f21bb9bb707ba1baa748b83ec51e
status: Synced
status: Healthy
lastPromotion:
finishedAt: "2024-07-15T22:13:25Z"
freight:
commits:
- healthCheckCommit: 111eaf55aa41f21bb9bb707ba1baa748b83ec51e
id: 961cfaedbc53aacdb65110028839a2c1c281290d
repoURL: https://github.com/example/kargo-demo.git
name: 666209fd9755a1e48bec6b27f5f447747410dd9e
origin:
kind: Warehouse
name: kargo-demo
name: test.01j2w7a15cxjjgejresfyw6ysp.666209f
status:
finishedAt: "2024-07-15T22:13:25Z"
freight:
commits:
- healthCheckCommit: 111eaf55aa41f21bb9bb707ba1baa748b83ec51e
id: 961cfaedbc53aacdb65110028839a2c1c281290d
repoURL: https://github.com/example/kargo-demo.git
name: 666209fd9755a1e48bec6b27f5f447747410dd9e
origin:
kind: Warehouse
name: kargo-demo
freightCollection:
id: 101bca5b0e18ca7913978a1da956308d2544f741
items:
Warehouse/kargo-demo:
commits:
- healthCheckCommit: 111eaf55aa41f21bb9bb707ba1baa748b83ec51e
id: 961cfaedbc53aacdb65110028839a2c1c281290d
repoURL: https://github.com/example/kargo-demo.git
name: 666209fd9755a1e48bec6b27f5f447747410dd9e
origin:
kind: Warehouse
name: kargo-demo
verificationHistory:
- analysisRun:
name: test.01j2w7aknhf3j7jteyqs72hnbg.101bca5
namespace: kargo-demo
phase: ""
id: 5535a484-bbd0-4f12-8cf4-be2c8e0041c9
phase: Pending
startTime: "2024-07-15T22:13:34Z"
phase: Succeeded
observedGeneration: 1
phase: Steady
Interacting with Stages
Kargo provides tools to manage Stages using either its UI or CLI. This section explains how to handle Stages effectively through both interfaces.
Users with credentials for and sufficient permissions within the Kargo control plane's Kubernetes cluster can also manage Stage
resources using kubectl
.
Creating a Stage
- Using the UI
- Using the CLI
-

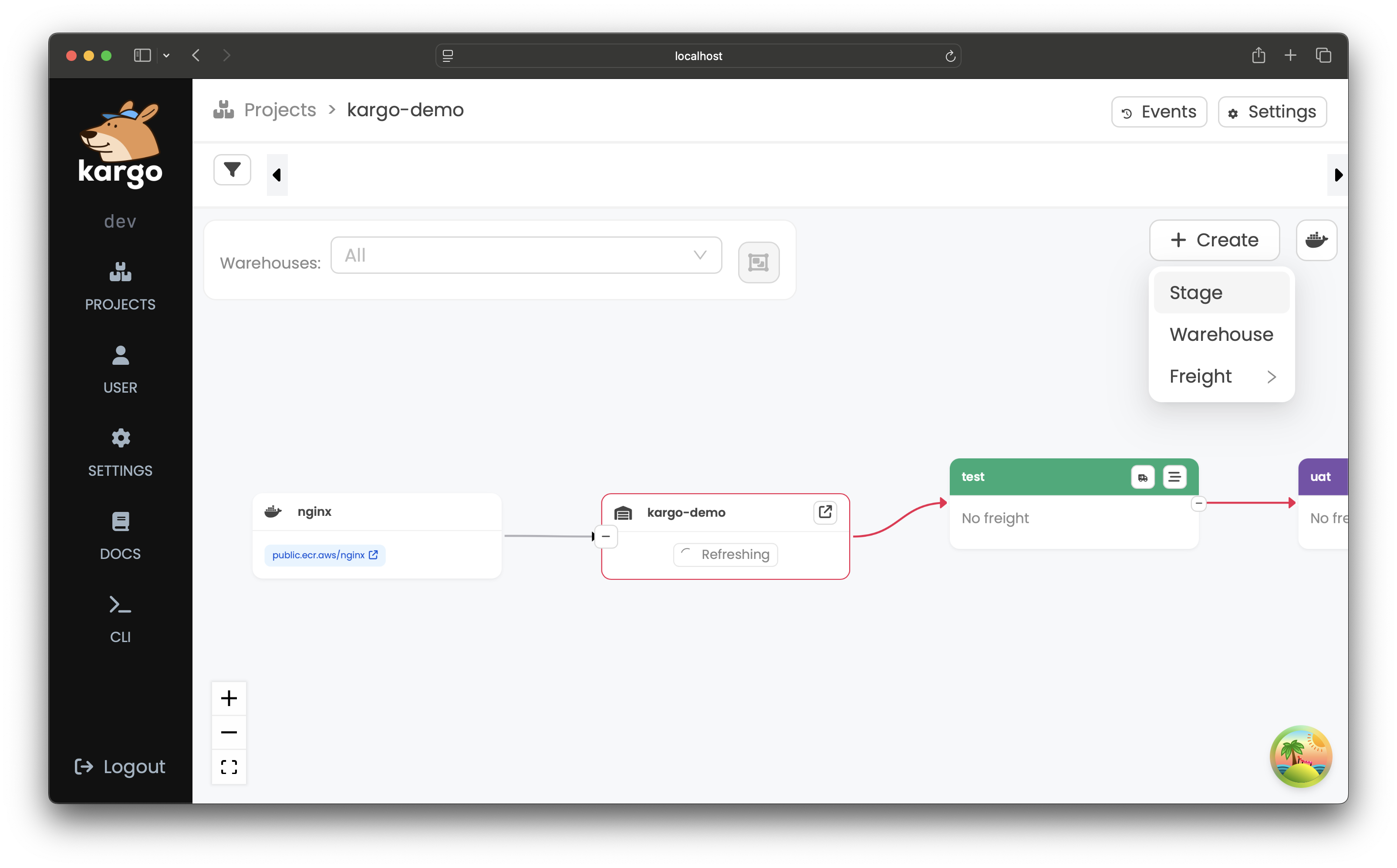

Navigate to your Project in the Kargo UI and locate the action menu in the upper right corner of the pipeline:
-
Click the magic wand icon to open the dropdown, then select Create Stage.

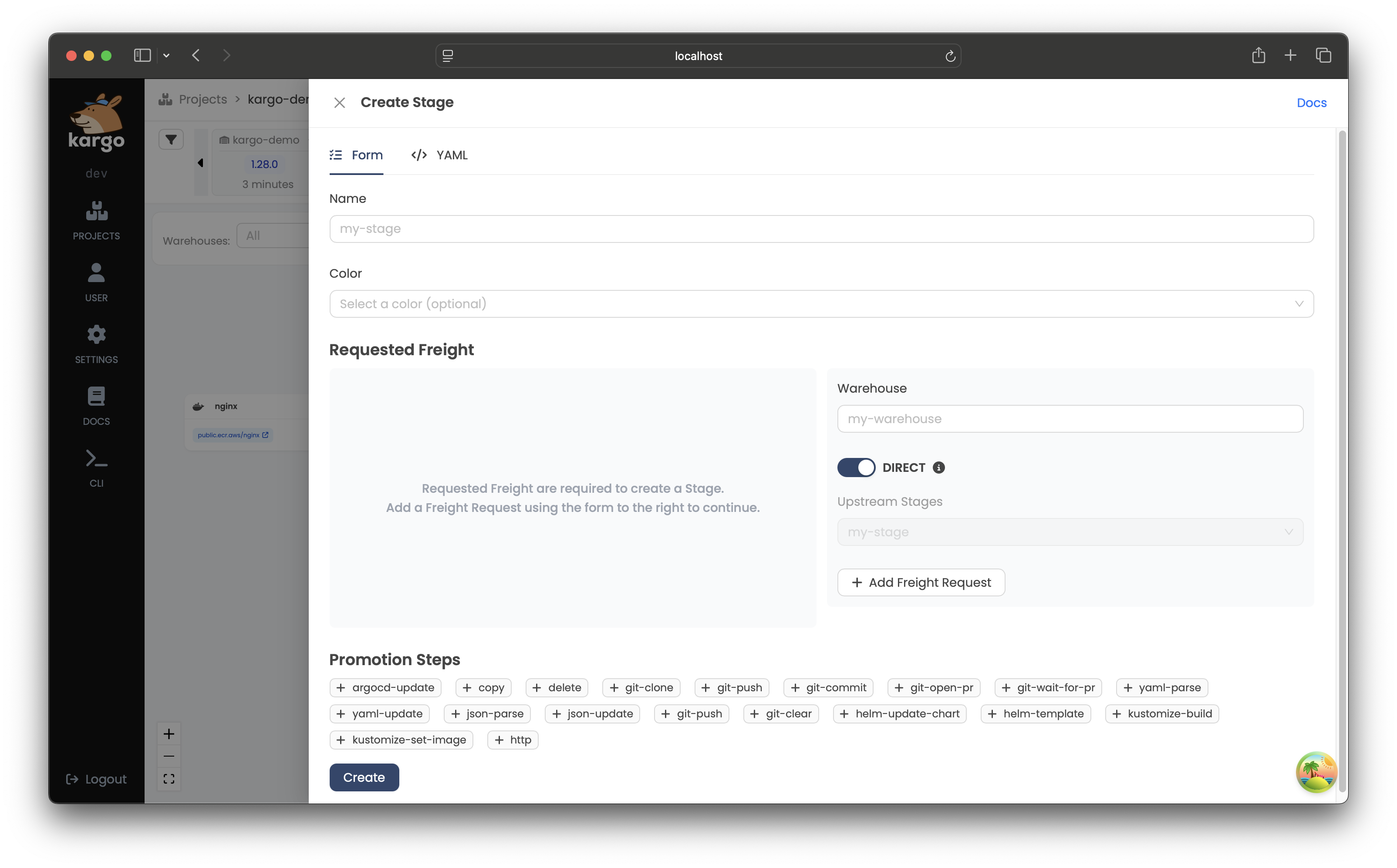

A form will appear to input details for a new
Stage
: -
Complete the form with the necessary details and submit it.

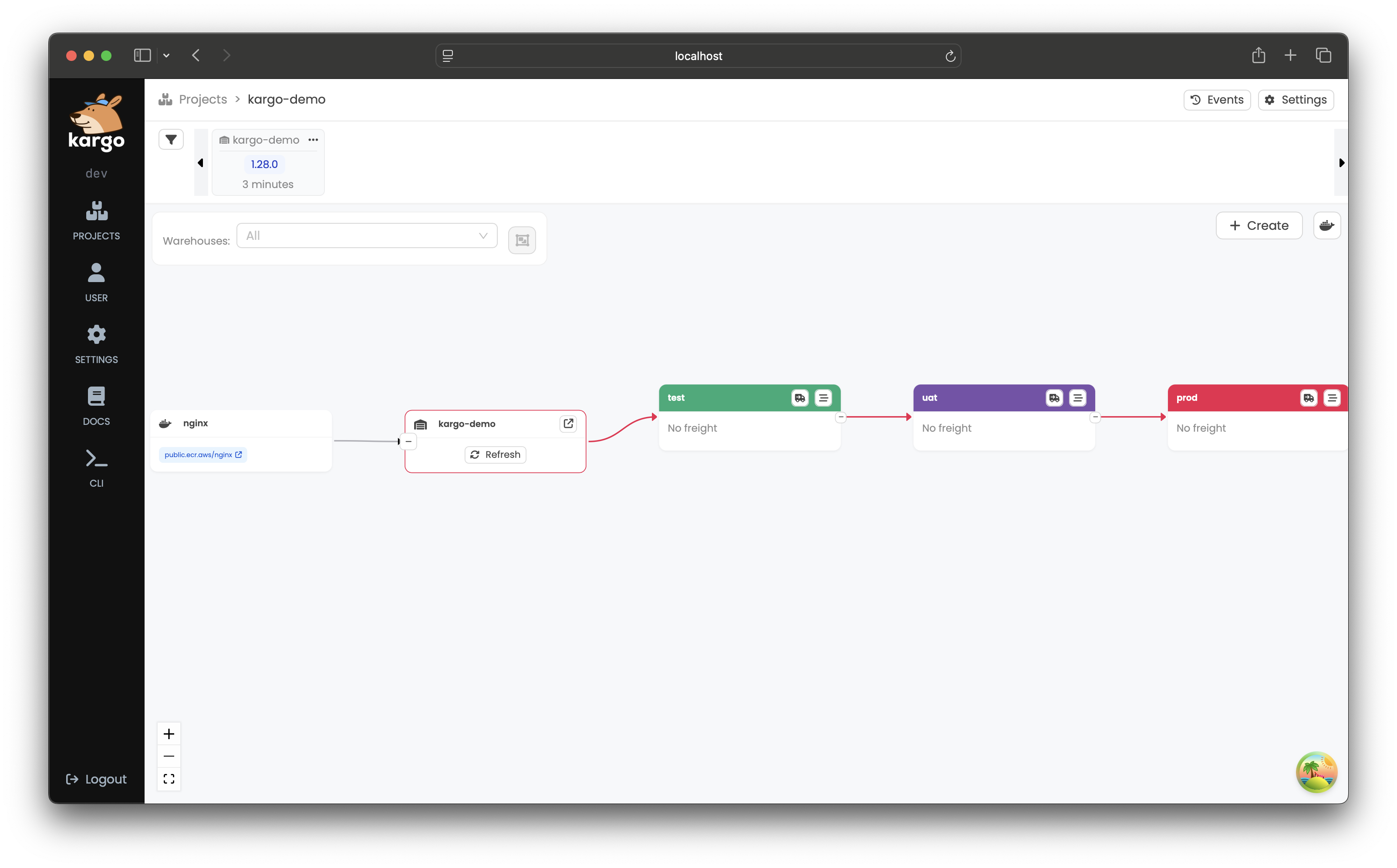

The new
Stage
will be added to the pipeline, connected to otherStage
s based on your configuration:
-
Define the
Stage
in a YAML file, for example:apiVersion: kargo.akuity.io/v1alpha1
kind: Stage
metadata:
name: <stage>
namespace: <project>
spec:
### Add your Stage specifications here -
Save the file and run:
kargo create -f <filename>
-
Verify the creation by listing
Stage
s:kargo get stage <stage> --project <project>
Promoting Freight to a Stage
- Using the UI
- Using the CLI
-
Click on the target icon to the left of the
Stage
: -
Select the desired
Freight
from the Freight Timeline, and click Yes to promote:
To promote Freight
to a Stage
using the CLI, run:
kargo promote \
--project kargo-demo \
--freight f5f87aa23c9e97f43eb83dd63768ee41f5ba3766 \
--stage prod
Alternatively, you can reference the Freight
you wish to promote using its alias:
kargo promote \
--project kargo-demo \
--freight-alias frozen-tauntaun \
--stage prod
Deleting a Stage
- Using the UI
- Using the CLI
-

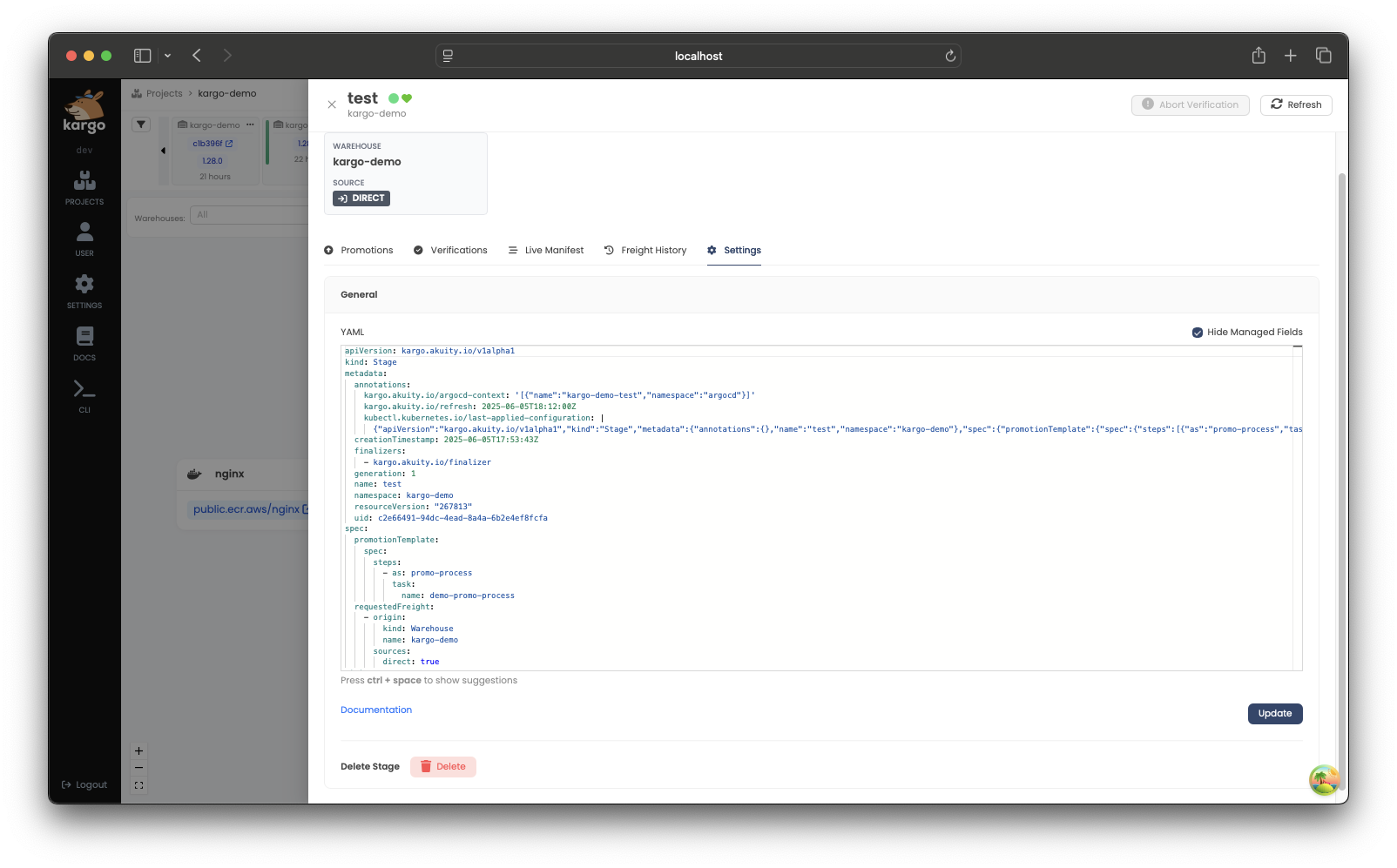

Select the
Stage
you want to remove. -

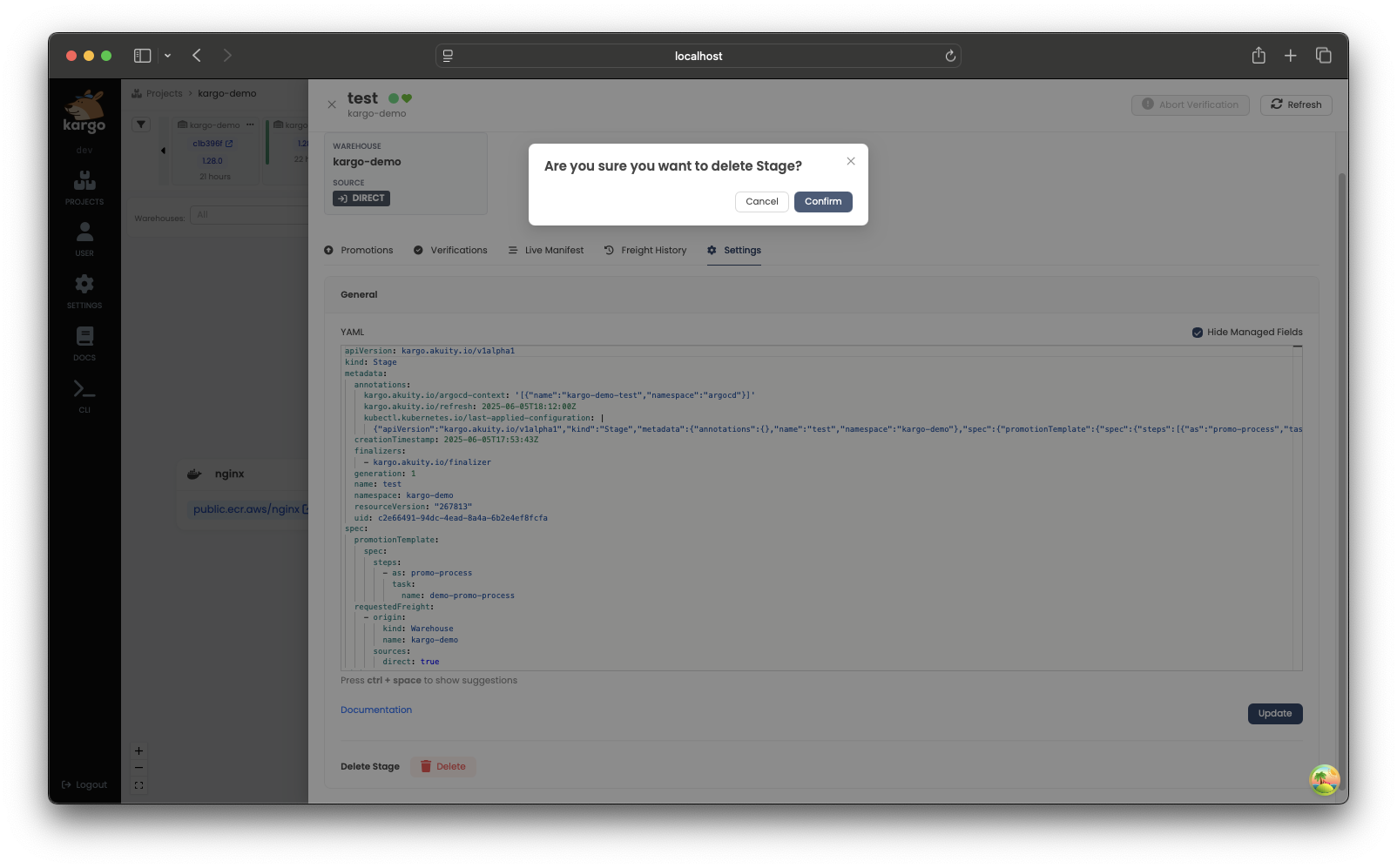

Click Delete in the upper right corner of the pop-up window:
To delete a Stage
using the CLI, run:
kargo delete stage <stage> --project <project>

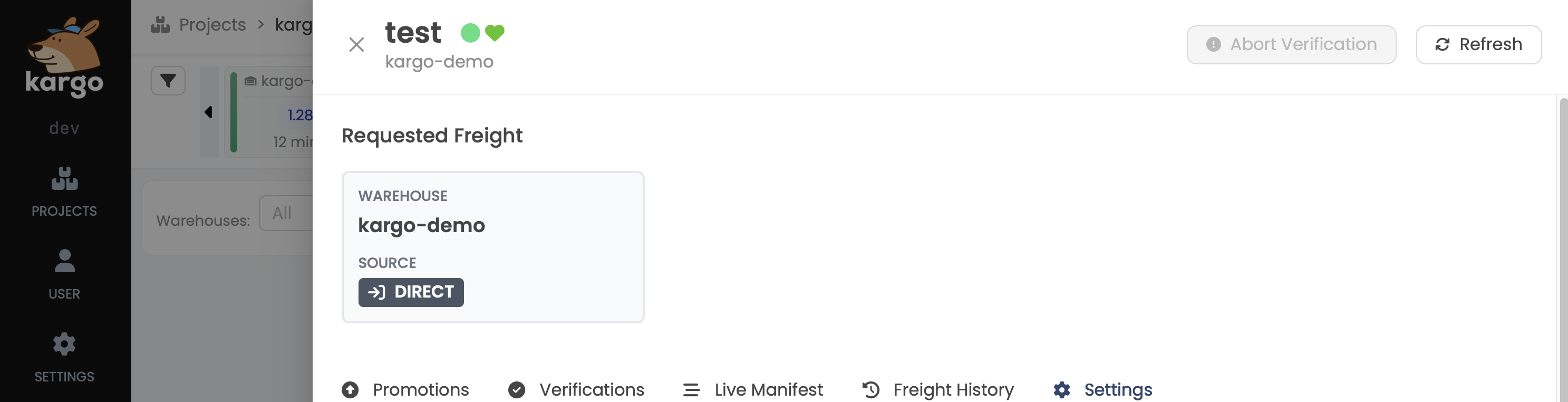

Refreshing a Stage
Refreshing a Stage
triggers its reconciliation process, which
includes checking for any newly-completed Promotions, queueing
up the next, pending Promotion, when applicable, and executing
any applicable health check processes.
- Using the UI
- Using the CLI
-
Select the
Stage
you want to refresh. -
Click Refresh in the top-right corner of the pop-up window:
To refresh a Stage
, run:
kargo refresh stage <stage> --project <project>
Reverifying a Stage's Current Freight
Verification processes, which run automatically following each successful Promotion,
can also be re-run on-demand. This is useful for re-attempting a failed verification
process or just to validate that applications within the Stage
are performing
as desired.
- Using the UI
- Using the CLI
-

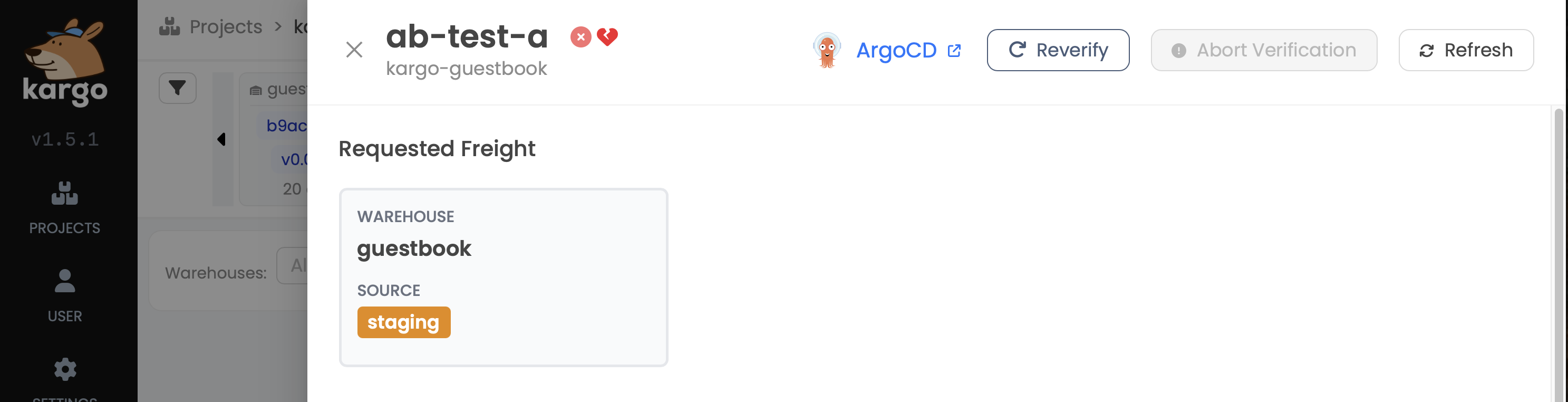

Select the
Stage
you want to reverify and click Reverify at the top of the menu:noteIf you wish to stop the in-progress verification, you can click Abort Verification.
-
To check the
Stage
s where theFreight

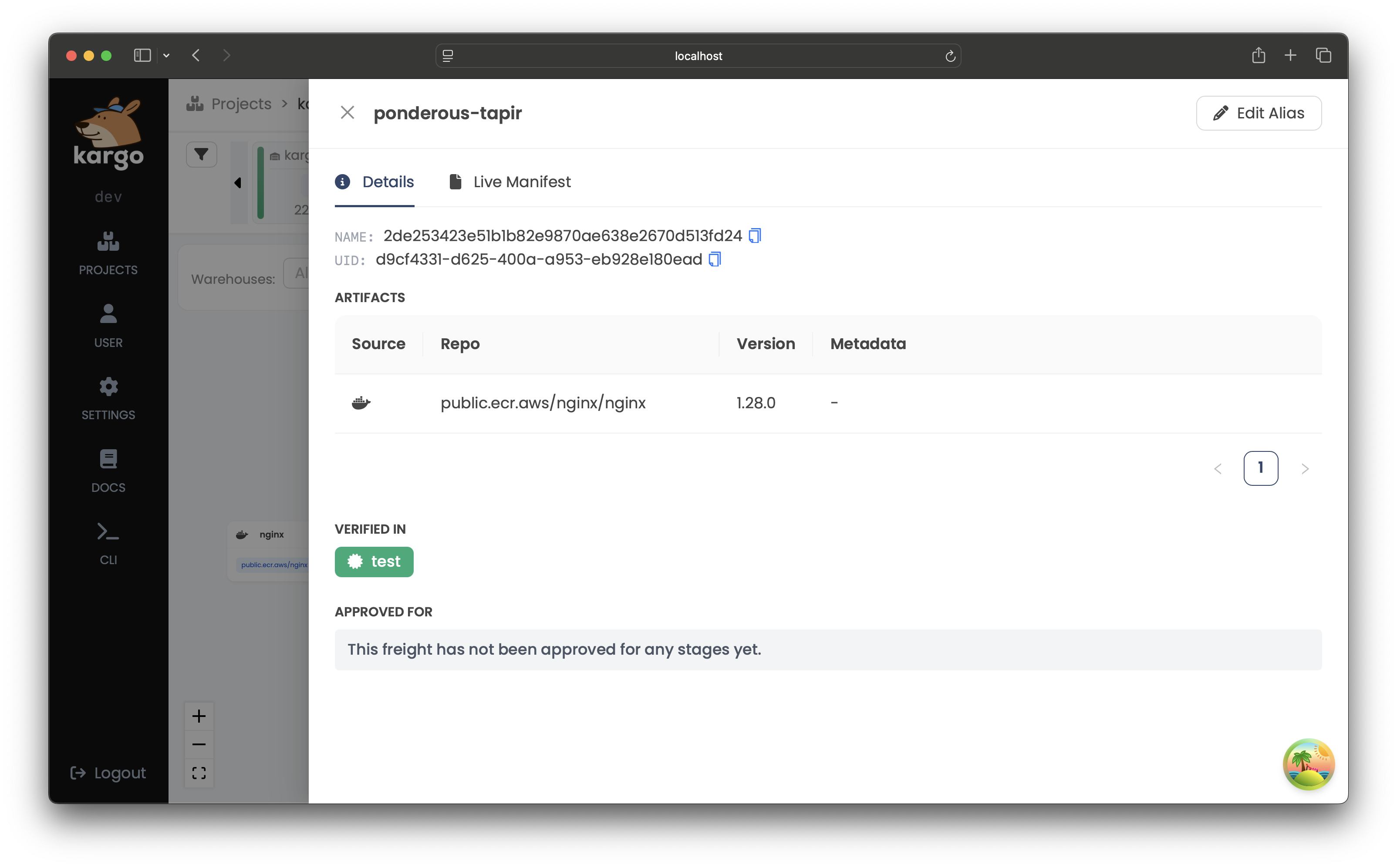

has been successfully verified, return to the Freight Timeline and select theFreight
. VerifiedStage
names will appear under VERIFIED IN:
-
To rerun verification using the CLI, run:
kargo verify stage <stage> --project <project>
If you want to stop this ongoing verification process, use:
kargo verify stage <stage> --project <project> --abort
-
To check the
Stage
s where theFreight
has been successfully verified, run:kargo get freight \
--project <project> \
--output jsonpath-as-json={.status}
