Working With Freight
Freight is an important Kargo concept. A single "piece of freight" is a set of references to one or more versioned artifacts, which may include one or more:
-
Container images (from image repositories)
-
Kubernetes manifests (from Git repositories)
-
Helm charts (from chart repositories)
Freight can therefore be thought of as a sort of meta-artifact. Freight is what Kargo seeks to progress from one stage to another.
To learn the fundamentals of freight and the warehouses that produce freight, see Core Concepts.
The remainder of this page describes features of freight that will enable you to work more effectively.
Names
Like all Kubernetes resources, Kargo Freight
resources have a metadata.name
field, which uniquely identifies each resource of that type within a given Kargo
project (a specially labeled Kubernetes namespace). When a Warehouse
produces
a new Freight
resource, it will compute a canonical representation of the
artifacts referenced by that resource and use that, in turn, to compute a SHA-1
hash. This becomes the value of the metadata.name
field. The deterministic
method of computing this value makes it a unique "fingerprint" of the
collection of artifacts referenced by the Freight
resource.
Aliases
While the metadata.name
field contains a predictably computed SHA-1 hash,
such identifiers are, unarguably, not very user-friendly.
To make Freight
resources easier for human users to identify, Warehouse
s
automatically generate a human-friendly alias for every Freight
resource they
produce and apply it as the value of the Freight
resource's
kargo.akuity.io/alias
label.
Generating aliases of the form <adjective>-<animal>
is a strategy borrowed
from Docker, which generates similar names for containers not explicitly named
by users.
Why a label?
Kubernetes enforces the immutability of the metadata.name
field for all
resources.
Kubernetes labels, by contrast, are both mutable and indexed, which makes them ideal for use as secondary identifiers.
When using the Kargo CLI to query for Freight
resources, the alias
field is
always displayed:
kargo get freight --project kargo-demo
Sample output:
NAME ALIAS AGE
f5f87aa23c9e97f43eb83dd63768ee41f5ba3766 mortal-dragonfly 35s
Sample output:
NAME ALIAS AGE
f5f87aa23c9e97f43eb83dd63768ee41f5ba3766 mortal-dragonfly 35s

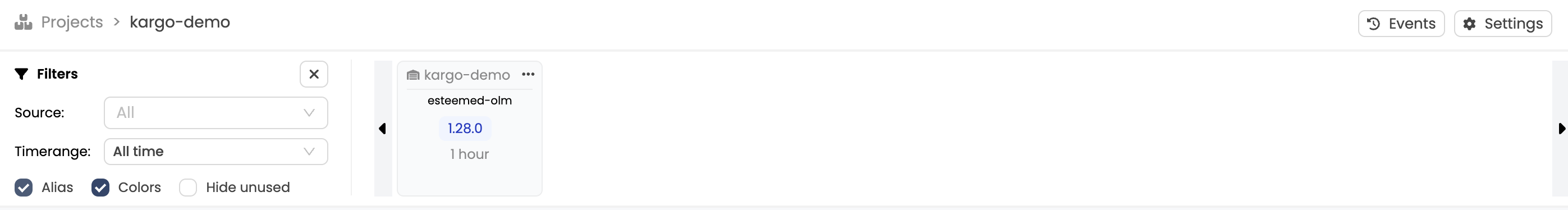

The Kargo UI, to make efficient use of screen real estate, displays aliases
only, but a Freight
resource's name
can always be discovered by hovering
over its alias.
Kargo CLI commands will accept Freight
aliases as an alternative to a
Freight
name. Refer to the help text for the kargo
command for more
information.
Updating Aliases
While every Freight
resource is automatically assigned an alias, users may
sometimes wish to override that alias with one of their own choosing. This can
make it easier to identify a particularly important (or problematic) Freight
resource as it progresses through the Stage
s of a pipeline.
To update the Freight
Alias:
- Using the UI
- Using the CLI
-

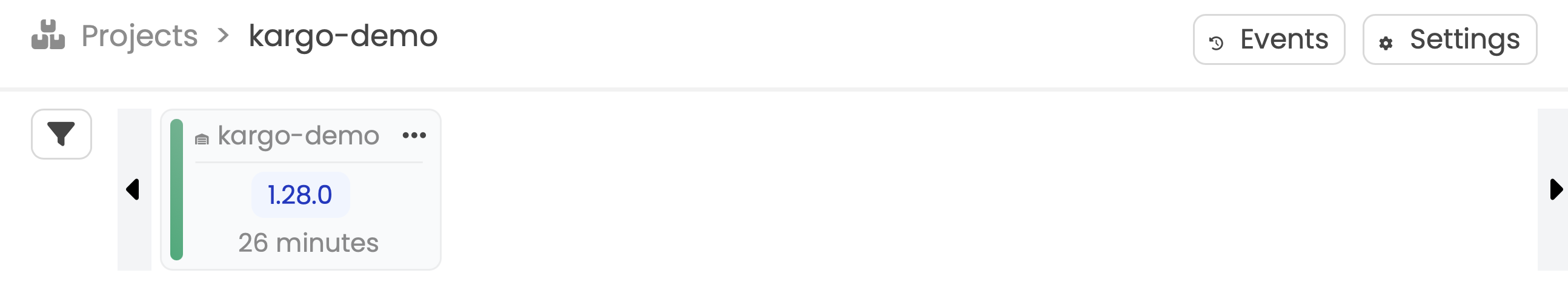

Click the three dots on the
Freight
in the Freight Timeline, then select Change Alias: -

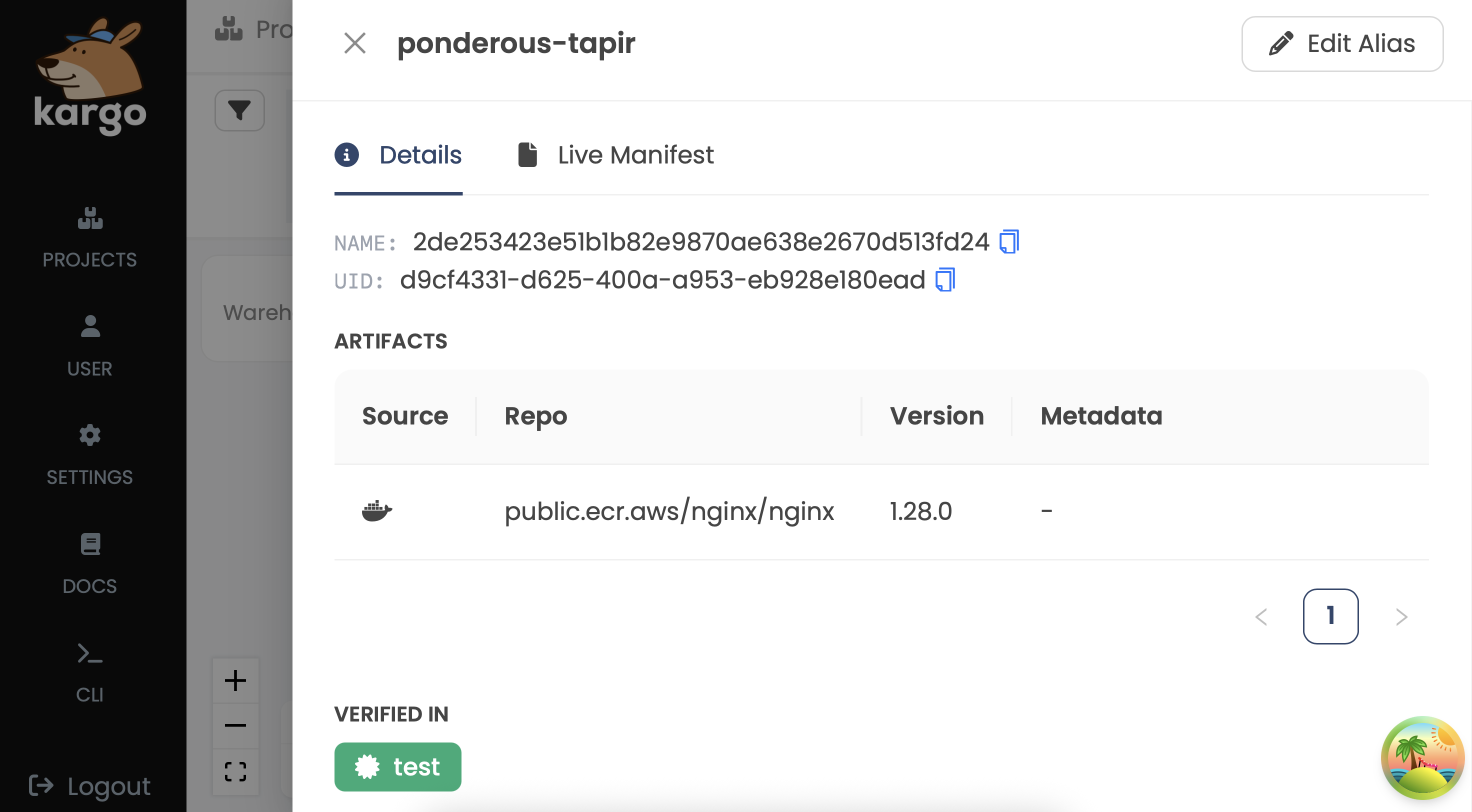

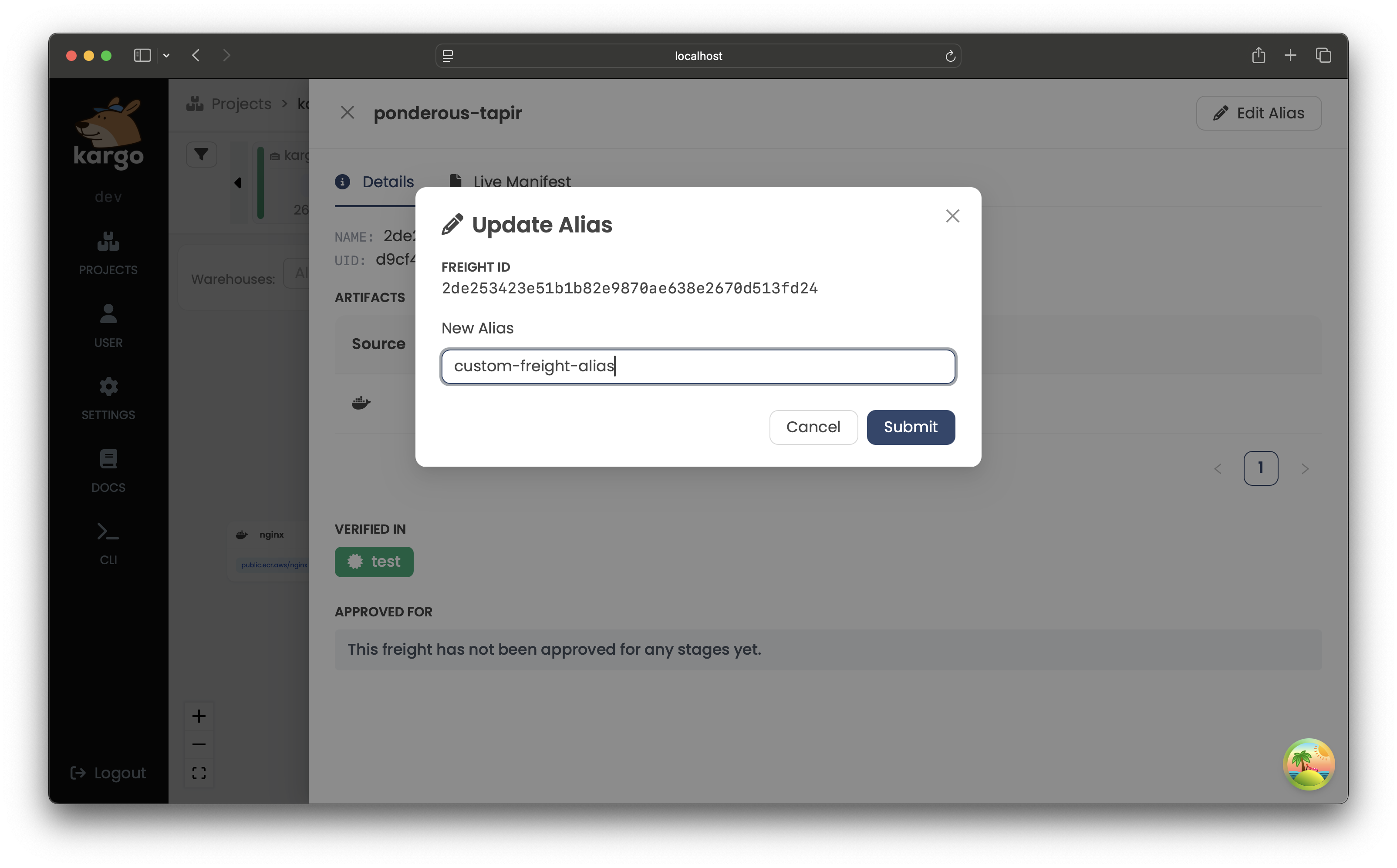

Specify a value in the New Alias field and click Submit:
kargo update freight \
--project kargo-demo \
--name f5f87aa23c9e97f43eb83dd63768ee41f5ba3766 \
--new-alias frozen-tauntaun
Alternatively, you can reference the Freight
to which you want to assign a new alias using its existing alias:
kargo update freight \
--project kargo-demo \
--old-alias mortal-dragonfly \
--new-alias frozen-tauntaun
Manual Approvals
The Core Concepts describes the
usual process by which Freight
resources are verified at each Stage
in a
pipeline before becoming available to the next Stage
or Stage
s. In brief, it
typically requires the Stage
to reach a healthy state and, if applicable,
any user-defined verification processes to complete with favorable results.
This is suitable for the average case wherein a new Freight
resource is
expected to traverse the entirety of a pipeline on its way to production,
however, it is nearly inevitable that the occasional need for a "hotfix" will
arise, in which case it may sometimes be desirable to bypass one or more
Stage
s in the pipeline.
To enable this, Kargo provides the ability to manually approve a Freight
resource for promotion to any given Stage
. To manually approve the Freight
:
- Using the UI
- Using the CLI
-

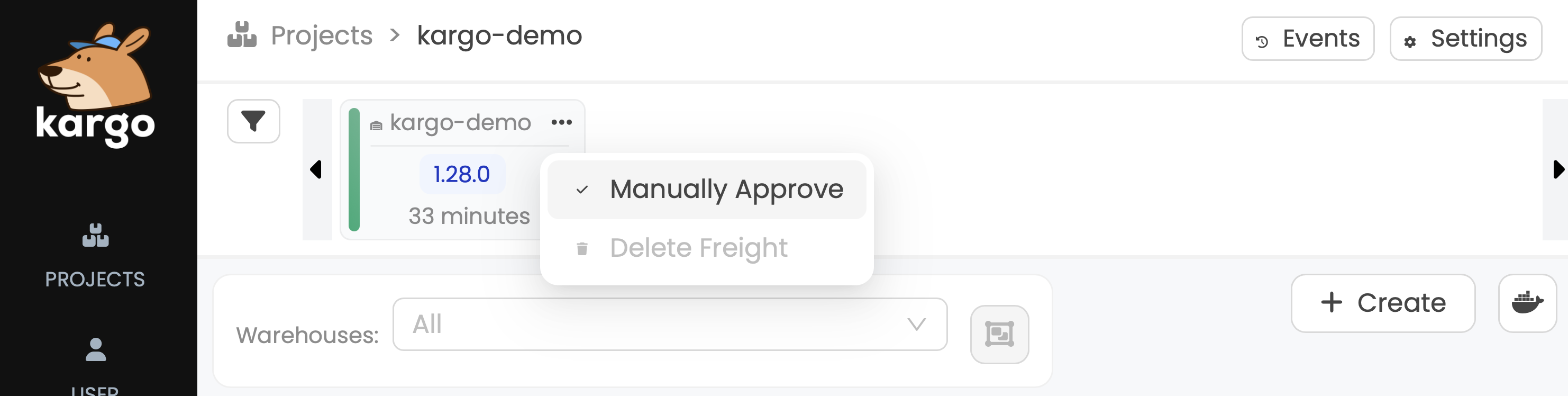

Click the three dots on the
Freight
in the Freight Timeline, then select Manually Approve: -

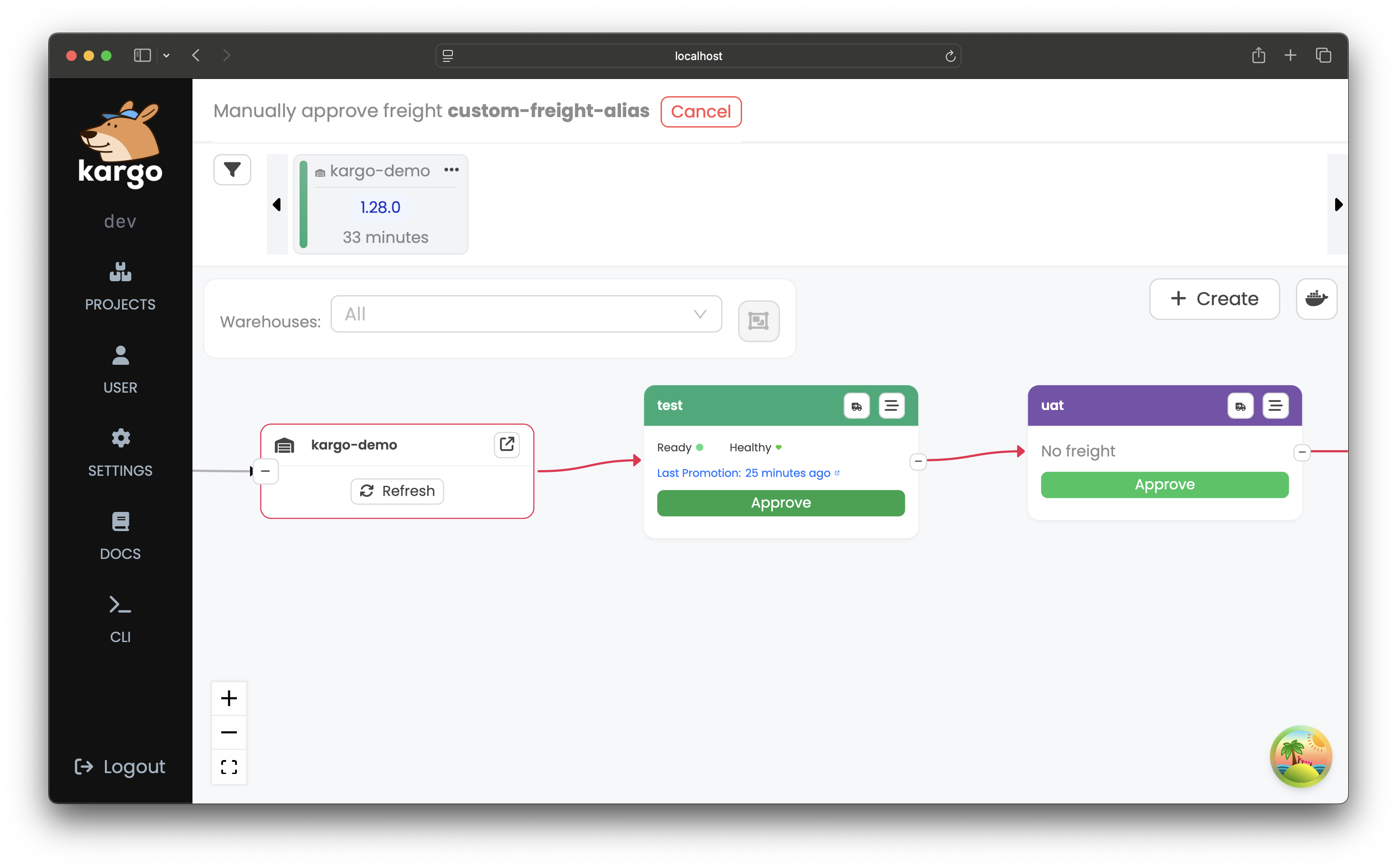

Select Approve on the
Stage
for which you want to approve promotion of theFreight
:
kargo approve \
--project kargo-demo \
--freight f5f87aa23c9e97f43eb83dd63768ee41f5ba3766 \
--stage prod
Manually granting approval for a Freight
resource to be promoted to any given
Stage
requires the same level of permissions as would be required to carry out
that promotion, although, granting manual approval does not automatically
create a corresponding Promotion
resource.
After successfully granting manual approval for a Freight
resource to be
promoted to a given Stage
, the Freight
resource's status
field will
reflect that approval.
The following depicts a Freight
resource that has been verified in a test
Stage
through the usual process, but has been manually approved for promotion
to the prod
Stage
. i.e. Any Stage
s between test
and prod
may be
bypassed:
- Using the UI
- Using the CLI
-

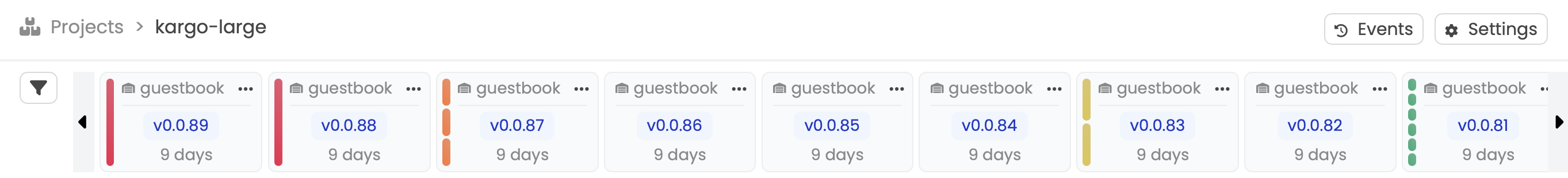

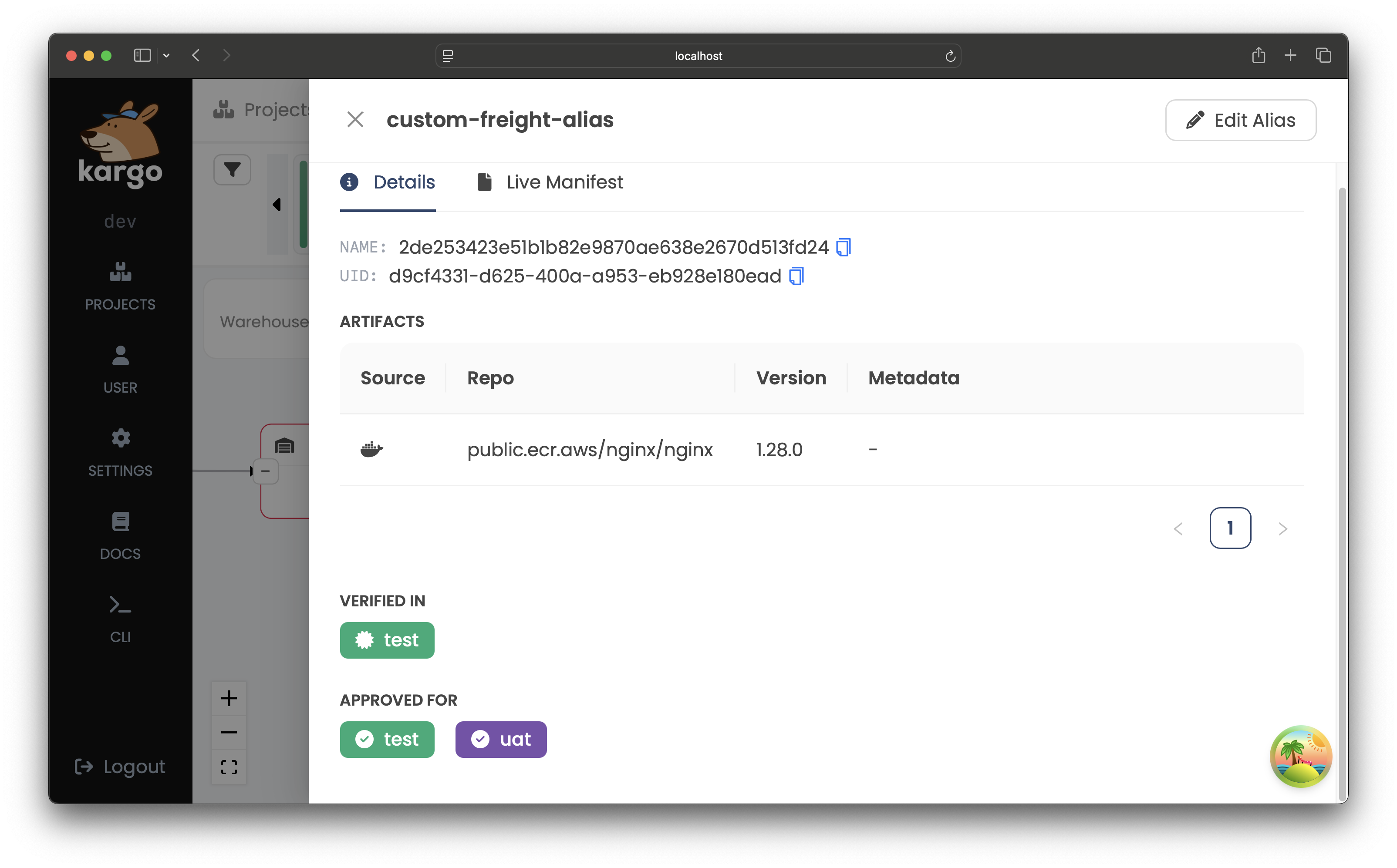

Click on the
Freight
in the Freight Timeline:
kargo get freight \
--project kargo-demo \
--output jsonpath-as-json={.status}
[
{
"approvedFor": {
"prod": {}
},
"verifiedIn": {
"test": {}
}
}
]
Promoting Freight to a Stage
- Using the UI
- Using the CLI
-

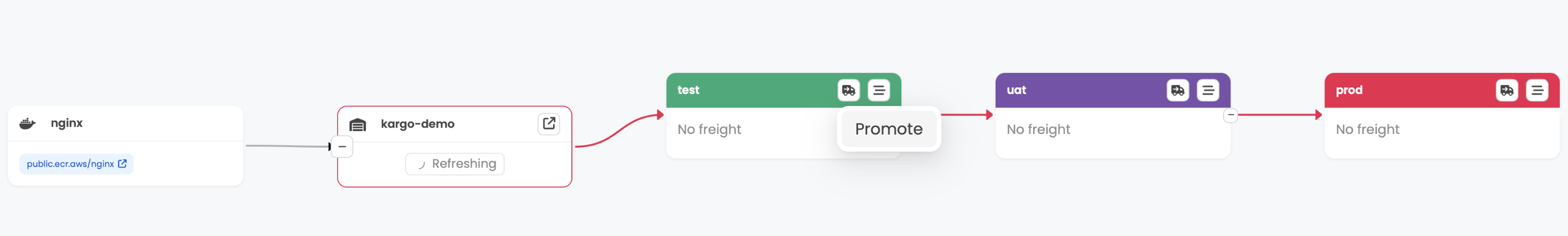

Click the three dots on the
Freight
in the Freight Timeline, then select Promote: -

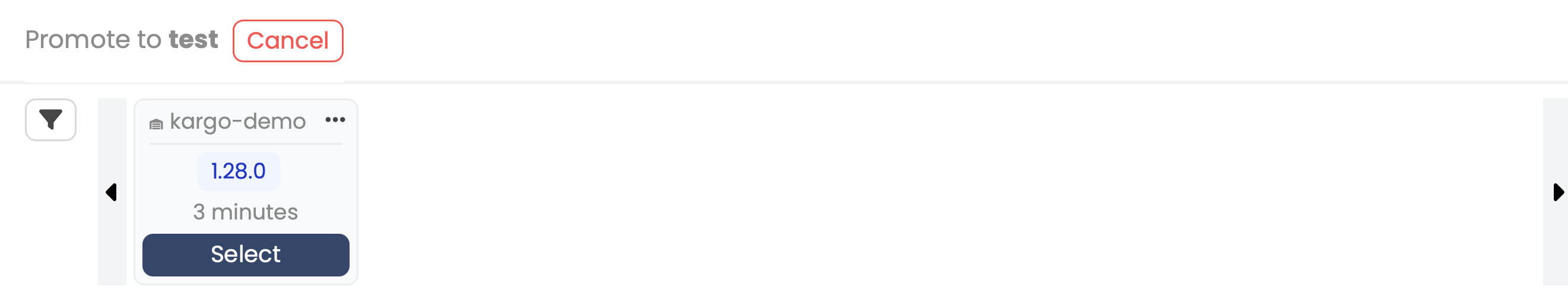

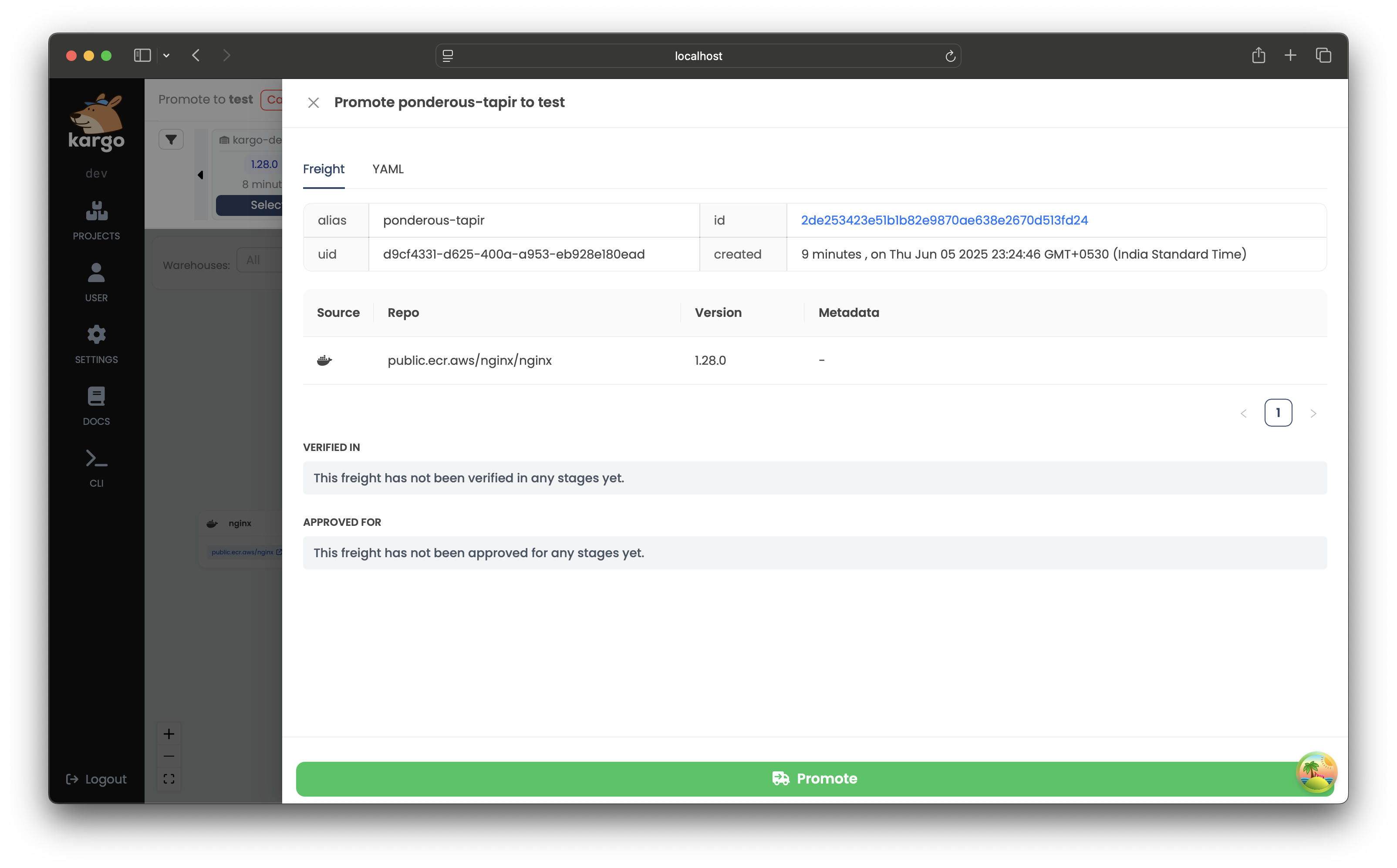

Select the
Stage
and click Promote:
To promote Freight
to a Stage
using the CLI, run:
kargo promote \
--project kargo-demo \
--freight f5f87aa23c9e97f43eb83dd63768ee41f5ba3766 \
--stage prod
Alternatively, you can reference the Freight
you wish to promote using its alias:
kargo promote \
--project kargo-demo \
--freight-alias frozen-tauntaun \
--stage prod
